Current

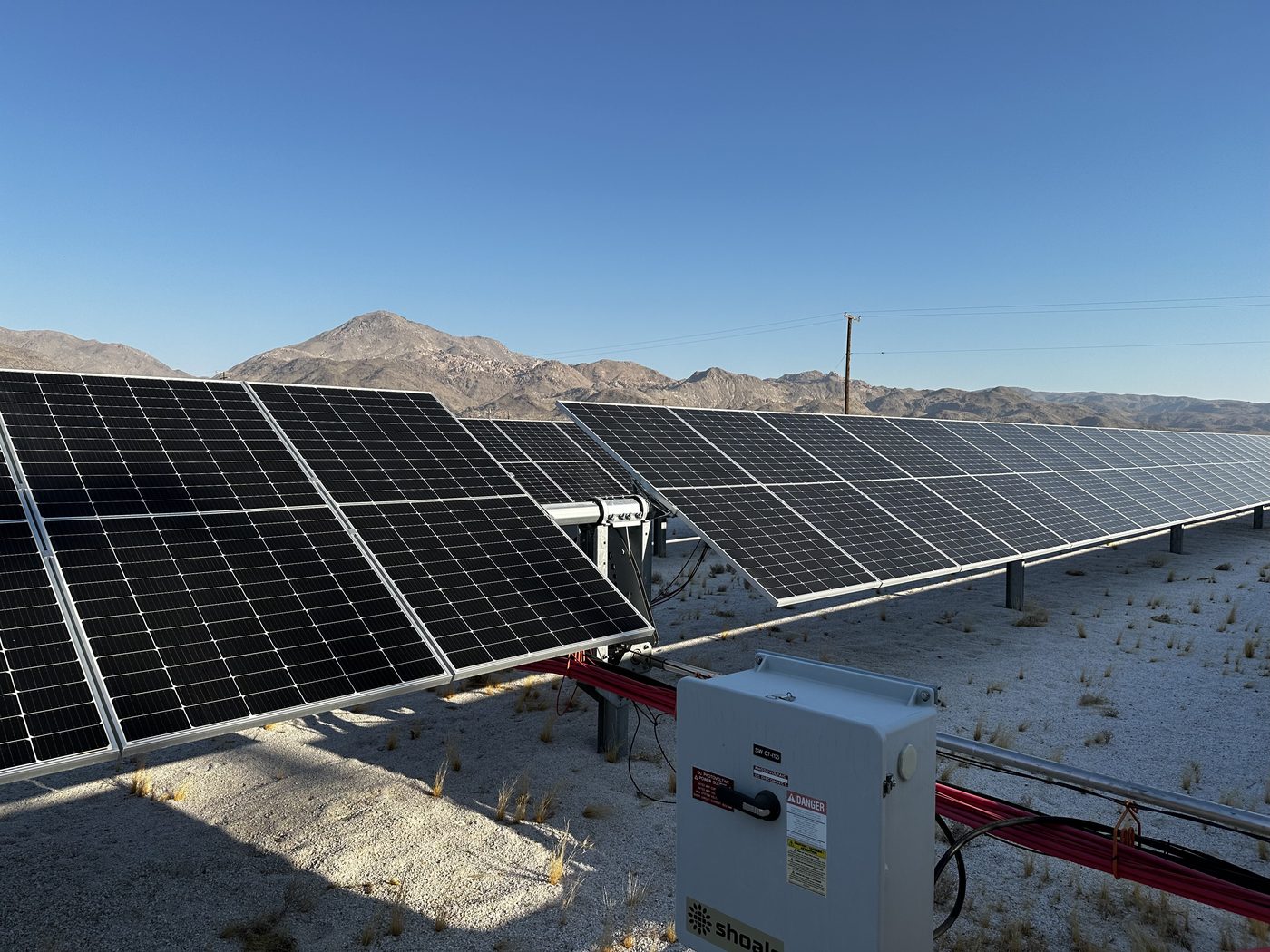

String current measurement provides a fast, non-intrusive window into array performance. Comparing short-circuit current across strings, corrected for irradiance, is one of the most effective methods for detecting shading, soiling mismatch, bypass diode failure, and partial module degradation. This section covers clamp meter selection for solar mode use, irradiance correction methodology, and practical string comparison techniques.

Equipment Options
Entec Solar
E-Sens
Wireless irradiance and temperature sensor for the E-1500 IV curve tracer. 2 km wireless range — place once and walk the full array. Connects to a calibrated reference cell; transmits plane-of-array irradiance and module temperature to the tracer for automatic IEC 60891 STC correction. Supports up to three Pt1000 probes.
Entec Solar
E-Ref
DIN-rail datalogger for reference PV modules — measures Isc and Voc to derive irradiance and cell temperature, outputs directly to SCADA via Modbus. E-Ref/01 monofacial; E-Ref/03 bifacial with three channels for front irradiance, rear irradiance, and temperature.
Entec Solar
E-1500
Fastest IV curve tracer on the market — up to 200 curves per hour, 0–1500V / 35A, ±0.5% accuracy at Pmax. E-Sens wireless sensor with 2 km range, bifacial albedo support, barcode reader, PVET cloud integration.
Sonel
IRM-1
Compact solar irradiance and temperature meter — plane-of-array irradiance (W/m²), PV module temperature, ambient temperature, inclination sensor, compass. LoRa wireless sync with PVM-1530, reSYNC gap recovery, 5000-record standalone datalogger. IP65.
Sonel
PVM-1530
Professional 1500V multifunction PV meter — IV curve tracing (IEC 62446-1 Cat. 2), Voc, Isc, Riso at four test voltages (RISO+ and RISO−), bypass and blocking diode test, continuity, and STC correction per IEC 60891 via IRM-1 sensor.
Field Testing Concept
Understanding the Geff Calculation
A plain-language explanation of effective irradiance — what it is, why front-side irradiance alone falls short for bifacial modules, and how to calculate Geff correctly in the field.
Emazys
Z300 HE
1500V PV tester with inrush current protection for HE and bifacial modules. Riso 0–99 MΩ, Voc, Isc, Rs, ground fault location. Bluetooth cloud-connected.
Emazys
Z300 PVT
1500V PV tester for conventional and PERC modules. Riso 0–99 MΩ, Voc, Isc, Rs, ground fault location. Bluetooth cloud-connected.
Emazys
Tempirra
Wireless irradiance and temperature sensor — Apogee SP-110-SS pyranometer (0–2,000 W/m²), dual PT1000 RTD temperature channels, Bluetooth cloud-connected. Works alongside Z300 PVT string testers.
Articles
Field Testing Concept
Understanding the Geff Calculation
A plain-language explanation of effective irradiance — what it is, why front-side irradiance alone falls short for bifacial modules, and how to calculate Geff correctly in the field.
Field Testing Guide
IV Curve Tracing vs. Isc Measurement
A practical comparison of both measurement approaches — what each method tells you, where it falls short, and how to choose the right one for the task at hand.
Frequently Asked Questions

Isc is the current produced when the string terminals are directly short-circuited — the leftmost point on the IV curve. A clamp meter on a live string connected to an inverter measures operating current (Imp), which is typically 2–5% lower than Isc. The two are not interchangeable for STC correction. True Isc requires isolating the string and shorting it through a measurement instrument.

For strings of identical module count and type under the same irradiance conditions, Isc variation greater than 3–5% between strings warrants investigation. Variations within 2% are typical due to module binning tolerances and minor temperature differences. Always correct readings to the same irradiance reference before comparing — a small irradiance gradient across a large array is enough to explain apparent current differences.

Not reliably. A failed bypass diode that is stuck open (not conducting) will not affect Isc — only the IV curve shape and Pmax will reveal it, through a stepped curve or reduced fill factor. A bypass diode stuck closed (permanently conducting) will reduce both Isc and Voc, mimicking a shaded sub-string. IV curve tracing is required to definitively identify bypass diode failures.

Uniform soiling reduces Isc proportionally, since current is almost linear with irradiance. The IV curve shape is preserved — only the current level drops. Degradation also reduces Isc but typically also affects Voc and fill factor to varying degrees over longer timescales. The reliable way to separate the two is to compare corrected Isc against a commissioning baseline: soiling is reversible after cleaning; degradation is not.
