Reading IV Curves:
A Field Technician's Guide

What the curve looks like: The vertical leg (right side near Voc) becomes less steep — it tilts to the left, meaning the curve drops to zero current at a lower voltage than the true Voc under ideal conditions. The knee rounds out rather than staying sharp. Isc at V=0 is largely unchanged. Voc is slightly reduced. Fill factor drops, and Pmax falls significantly. The higher the series resistance, the more the knee rounds and the less steep the right-hand slope becomes.

The physics: Series resistance adds a voltage drop (I×Rs) that subtracts from the terminal voltage. As current increases through the string, this drop grows — so the effect is most visible at high current, which is why the top of the curve (high current) is where the slope change first appears, rolling the knee. At Voc (zero current) Rs has no effect, which is why Voc is largely unchanged.

Common causes: Degraded MC4 connectors (oxidation, contamination, or inadequate crimp), loose or corroded terminal connections at combiner boxes, undersized wiring, junction box terminal corrosion, and inter-cell solder bond degradation inside the module.

The Z300 PVT and Z300 HE measure series resistance directly — faster than a full IV trace and sufficient to flag the problem. Thermal imaging pinpoints the hot connector or junction box. The IV curve then confirms the magnitude of power loss.

What the curve looks like: The horizontal leg (constant current region) develops a downward slope from left to right — instead of holding flat, current gradually decreases as voltage increases across the top of the curve. The slope of this leg is directly related to shunt resistance: a steeper downward slope = lower Rsh. Isc at V=0 is reduced. The knee may still be reasonably sharp. Voc is also reduced because the shunt path dissipates current that would otherwise contribute to open-circuit voltage. Fill factor drops. In severe cases the horizontal leg may slope so much it eliminates the flat region entirely.

The physics: Shunt resistance represents an unintended current path across the cell junction. Current that flows through this path (I_shunt = V/Rsh) is lost — subtracted from the current available at the terminals. Since shunt current increases with voltage, the loss is proportional to V — producing a linear downward slope in the horizontal leg. At V=0 the shunt contributes no loss (I_shunt = 0), which is why the Isc intercept is relatively unaffected, but at Voc the full shunt current is being lost.

Common causes: Manufacturing defects (metallic particles bridging cell layers), physical damage from hail or mechanical stress causing cell cracks that create conductive paths, potential-induced degradation (PID), moisture ingress enabling conductive pathways across cell edges.

Riso measurement detects insulation breakdown fast. EL imaging localises shunt sites at cell level. Thermal imaging shows the heat generated by shunt currents under load. The IV curve confirms the electrical magnitude of the shunt.

What the curve looks like: The curve shows one or more distinct steps — abrupt drops in current at specific voltage levels — creating a staircase pattern in the otherwise flat horizontal leg. Each step corresponds to one bypass diode circuit activating. A typical 60-cell module has three bypass diodes, each protecting a 20-cell sub-string. A step appears for each activated diode. The number and depth of steps indicates how many and which sub-strings are affected. Isc is reduced in proportion to shading. Voc is reduced by one module's sub-string Voc per activated bypass diode. Fill factor is severely degraded.

The physics: When cells in a sub-string are shaded, they cannot maintain the same current as their unshaded neighbours in the series string. Without bypass diodes, these shaded cells would be driven into reverse bias and could overheat (creating a hotspot). Bypass diodes activate to route string current around the shaded sub-string — sacrificing that sub-string's voltage contribution but protecting the cells. Each activated bypass diode removes approximately one-third of a module's voltage contribution from the string curve.

Common causes: Physical shading from structures, vegetation, or adjacent module rows; soiling concentrated on part of a module (bird droppings, leaves, dust accumulation); cracked or delaminated cells that reduce quantum efficiency in a sub-string; manufacturing defects.

Isc screening identifies the affected string in seconds. Thermal imaging shows the hotspot pattern on the affected module. Visual inspection usually confirms the cause. In most shading scenarios the IV curve is used to confirm and quantify — the team already knows which string and module before connecting the tracer.

What the curve looks like: The entire curve shifts downward uniformly — the shape is fully preserved (flat top, sharp knee, steep right drop) but every current value is lower. Isc is reduced in proportion to the irradiance reduction or quantum efficiency loss. Voc is largely unchanged (very slight reduction due to lower photocurrent). Fill factor is maintained. The curve looks like a smaller but geometrically identical copy of the reference. This shape-preserved downward shift is the key distinguishing feature.

The physics: Short-circuit current is nearly directly proportional to irradiance. Soiling uniformly reduces the irradiance hitting every cell, so every cell produces proportionally less current — and since every cell is equally affected, there is no current mismatch, no bypass diode activation, and no change in curve shape. The same signature results from long-term cell efficiency degradation (LID, LeTID), though degradation shifts both Isc and Voc more subtly over time.

Common causes: Uniform soiling or dust accumulation across the module face; long-term cell degradation; incorrect string configuration (fewer modules than expected — always verify string count before attributing to degradation); lower irradiance at the module than at the reference sensor.

Cross-string Isc comparison identifies the affected strings in seconds. Visual inspection confirms soiling. For degradation, the only reliable method is comparison to a correctly Geff-corrected commissioning IV baseline — highlighting again why establishing that baseline at handover is essential.

What the curve looks like: The curve is compressed horizontally — it terminates at a lower voltage than expected. Isc is unchanged. The shape from Isc to the knee is preserved. Fill factor may be maintained if the knee remains sharp. Pmax drops proportionally to the Voc reduction. The rightmost point of the curve (Voc) has moved left. If individual modules are missing from the string, the voltage reduction will be a precise integer multiple of the per-module Voc contribution — providing a direct count of how many modules are open-circuited.

The physics: Voc is set by the number of series-connected cells and the logarithm of photocurrent. Temperature has a significant negative effect (approximately −0.3% per °C for c-Si). Always temperature-correct before diagnosing a Voc fault. If corrected Voc is still low: a bypass diode stuck in conduction permanently removes one sub-string's voltage; an open circuit in a module (failed junction box fuse, connector failure, cracked cell across the full module width) removes the entire module's voltage; and a module replaced with a lower-Voc type introduces a proportional reduction.

Diagnostic shortcut: Divide the measured corrected Voc by the expected per-module Voc. If the result is a whole number less than the expected module count, you have that many open-circuit modules in the string — locate them with a module-level Voc walk-down before connecting the IV tracer.

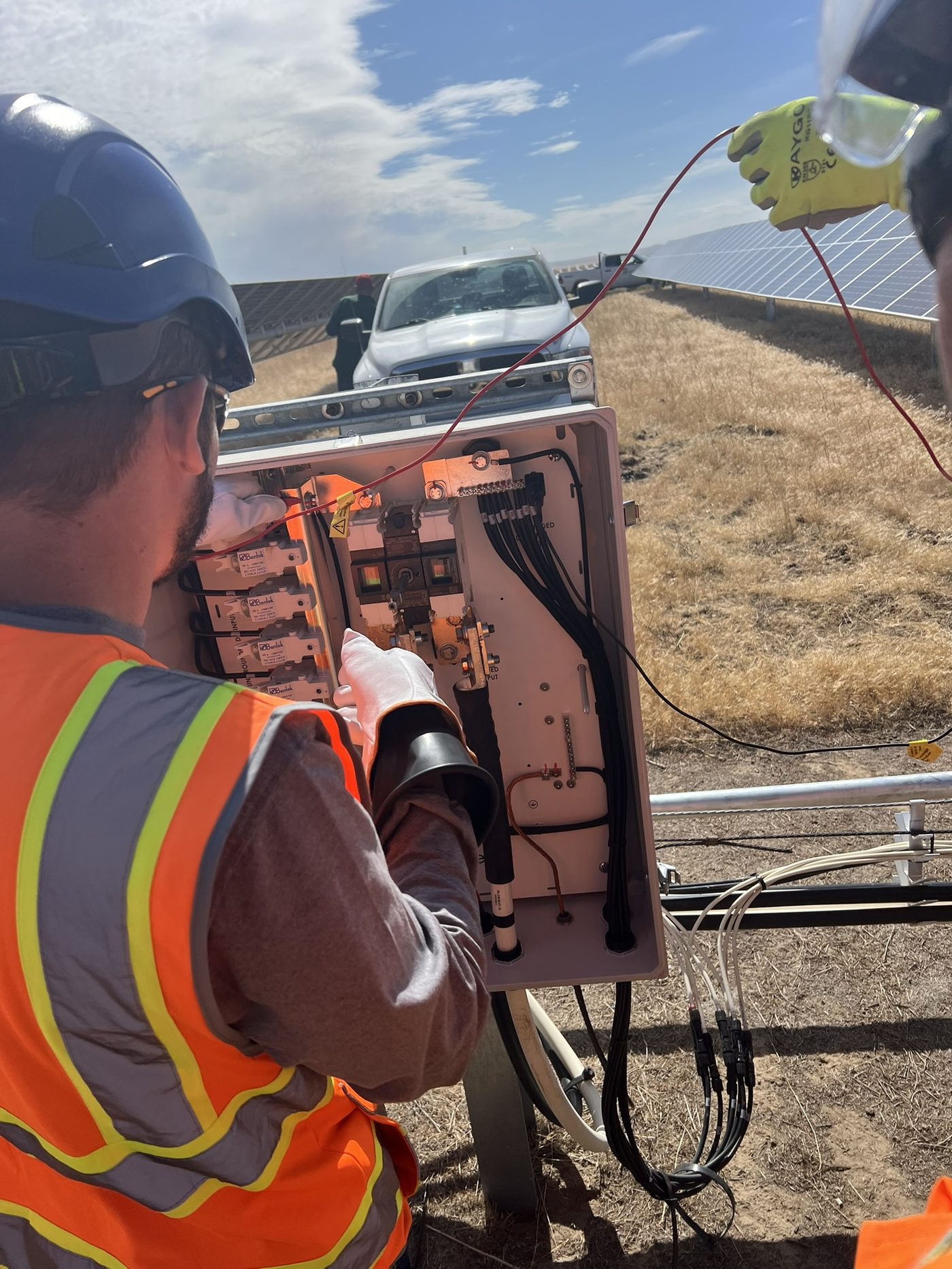

A simple Voc measurement at the combiner confirms the voltage loss immediately. A module walk-down with a multimeter identifies where the voltage steps down unexpectedly. The IV curve adds fill factor context but is rarely necessary to locate a Voc fault.

What the curve looks like: The curve shows multiple subtle steps or inflection points in the horizontal leg — less pronounced than the clean bypass diode steps of overt shading, but producing an uneven, wavy, or multi-shouldered shape. In the most readable case, distinct plateaus appear at different current levels as different sub-strings with different Isc capabilities dominate the curve at different voltages. Fill factor drops significantly. Isc is set by the weakest module or sub-string in the string. Voc may be normal or slightly reduced.

The physics: When modules in a series string have different short-circuit current capabilities, the string current is limited by the weakest module. At certain voltage levels, the stronger modules can only deliver the current the weakest module can sustain — producing a step. Multiple modules with different Isc values produce multiple steps. The more modules differ in Isc, the more pronounced the steps. This is different from bypass diode steps because the current drops are gradual (due to the diode characteristic of each cell) rather than abrupt.

Common causes: Mixing modules from different production batches with different bin characteristics; replacement modules that do not match original module Isc; uneven degradation across the string; modules at different irradiance levels due to partial shading or inter-row shading on some modules; varying soiling levels across a string.

This is one of the cases where the IV curve genuinely adds information that simpler screening cannot. Mismatch may not appear in a simple Voc or Isc check because both headline values can be close to expected while fill factor — only visible from the full curve — reveals the power loss. EL imaging at module level identifies which cells are degraded; module-level Isc measurements confirm which modules are the weak links.
